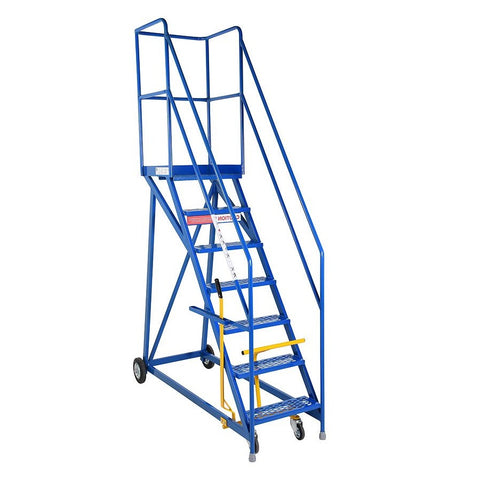

Model: S9
Hand built with attention to detail, both in design and manufacture, to ensure total reliability and many years of arduous operation. Over load tested to 200kg.
Construction: Welded heavy gauge steel box section and bar. fitted with hand lock lever anchorage; when locked, the front feet rest firmly on the floor, feet fitted with protective grey non-marking rubber feet. Safety warning bar fitted to protrude in front of steps, linked to hand lock lever mechanism to deter used from climbing steps while still in 'mobile' mode.
Narrow base model: Outboard wheels mounted on straight base frame for optimum space saving requirements. Finish: Main structure blue epoxy finish; safety bar and hand lever mechanism in safety yellow.
Wheels: Front 2 swivel castors with 100mm diameter rubber tyred wheels, with roller bearings, 2 rear axle mounted 200mm diameter wheels with rubber tyres and roller bearings.
A caution notice is fitted to remind user of operation procedure. A health and safety at work information sheet is supplied.
No. of Treads (inc platform) |
Average Working Height (mm) |
Platform Height (mm) |
Overall Dimension (H x W x D) mm |
3 | 2190 | 690 | 1690 x 700 x 930 |
4 | 2420 | 920 | 1920 x 700 x 1140 |
5 | 2650 | 1150 | 2150 x 700 1240 |
6 | 2880 | 1380 | 2380 x 700 x 1410 |
7 | 3110 | 1610 | 2610 x 700 x 1570 |
8 | 3340 | 1840 | 2840 x 700 x 1740 |
9 | 3570 | 2070 | 3070 x 700 x 1900 |
10* | 3800 | 2300 | 3300 x 900 x 2060 |
11* | 4030 | 2530 | 3530 x 900 x 2230 |
12* | 4260 | 2760 | 3760 x 900 x 2400 |
13* | 4490 | 2990 | 3990 x 1230 x 2560 |
14* | 4720 | 3220 | 4220 x 1230 x 2730 |
15* | 4950 | 3450 | 4450 x 1230 x 2890 |
*10 tread and above supplied in 2 halves for transport purposes.
