Understanding Lifting Shackle Applications

When it comes to heavy-duty lifting and rigging, having the right equipment is paramount for ensuring safety, efficiency, and precision. Among the essential tools in lifting applications, lifting shackles stand out as incredibly versatile, robust, and easy to use. In this blog, we’ll explore the world of lifting shackles, their diverse applications, how to choose the right shackle for your unique needs, and more. So, let’s get started!

Types of Lifting Shackles and Their Specialised Uses

Lifting shackles come in various types to accommodate different needs. These types include:

• Bow Shackles: Ideal for multi-dimensional loads and perfect for applications requiring rotation.
• DEE Shackles: Suitable for straight-line pulls and excellent for connecting items with angular loads.
• Screw Pin Shackles: Featuring a removable pin for quick and secure connections, these types of shackles are widely used in scenarios where temporary connections are necessary.
• Safety Pin Shackles: Designed with a locking mechanism to prevent accidental release, ensuring an added layer of safety.

What Applications are Lifting Shackles Used For?

Lifting shackles are indispensable tools across a multitude of industries. Their sturdy design and ability to handle heavy loads make them an essential component in various lifting and rigging operations. Some common applications for lifting shackles include:

Construction and Infrastructure:

Lifting shackles play a crucial role in construction projects, from lifting steel beams to securing heavy machinery. They provide a secure connection point for cables, slings, and other rigging equipment, ensuring safe and precise lifting.

Maritime Operations:

In the maritime industry, lifting shackles are used to hoist and secure cargo containers, anchor chains, and heavy maritime equipment. Their corrosion-resistant properties make them suitable for the harsh marine environment.

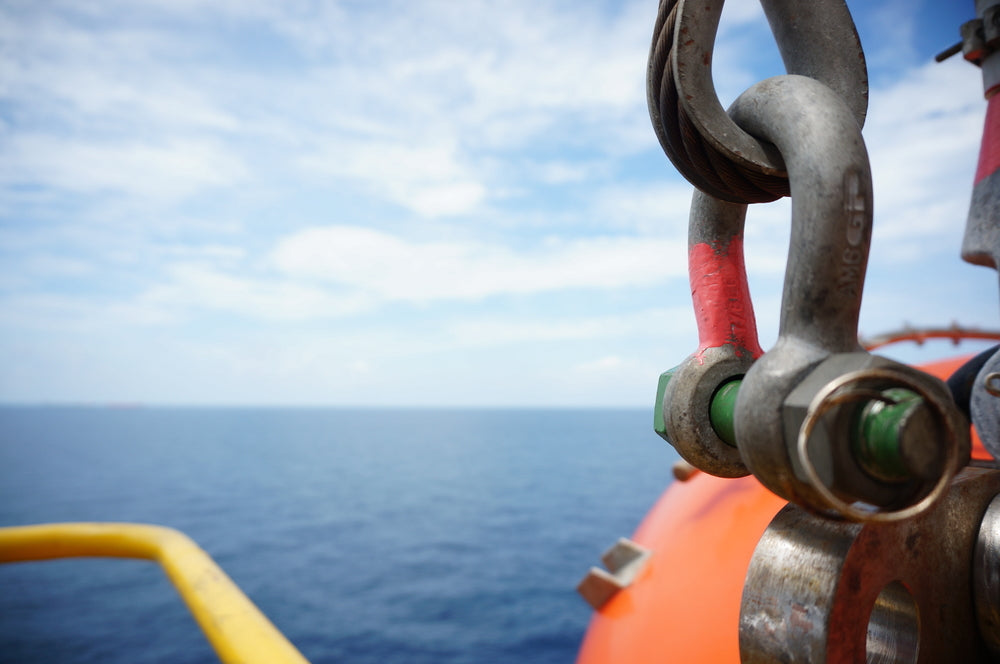

Offshore Oil and Gas:

Lifting shackles are vital in offshore operations, such as lifting and positioning drilling equipment, subsea structures, and pipelines. Their durability and load-bearing capacity are essential for maintaining safety standards in challenging conditions.

Agriculture and Farming:

Lifting shackles find utility in the agricultural sector for tasks like moving large bales of hay, positioning irrigation equipment, and even assisting in livestock handling systems.

Automotive and Manufacturing:

Within manufacturing facilities, lifting shackles aid in the movement of heavy machinery during assembly or maintenance. They're also used to lift vehicle engines and components in the automotive industry.

How to Choose the Right Lifting Shackle for Your Needs

Selecting the appropriate lifting shackle for a specific task is an extremely step in ensuring both safety and efficiency. The right shackle will not only meet the load requirements but also align with the unique conditions of the lifting operation. Here are the key factors to consider when choosing the perfect lifting shackle for your needs:

Load Capacity and Working Load Limit (WLL):

The first and foremost consideration is the load capacity of the lifting shackle. The Working Load Limit (WLL) indicates the maximum weight that the shackle can safely bear. It's crucial to choose a shackle with a WLL that exceeds the anticipated load. Always account for potential shock loads or unexpected changes in the load during the lifting process.

Shackle Type:

Different types of shackles are designed for specific applications. Consider the nature of the load and the angles at which the load will be lifted. Bow shackles are suitable for multidirectional loads, D shackles are great for straight-line pulls, while screw pin shackles provide convenience for temporary connections.

Material and Corrosion Resistance:

Lifting shackles are typically made from materials such as carbon steel, stainless steel, or alloy steel. The choice of material depends on the environment in which the shackle will be used. For corrosive or marine environments, stainless steel or alloy steel shackles are preferred due to their corrosion-resistant properties.

Design Standards and Certification:

Ensure that the lifting shackle meets relevant industry standards and certifications. Look for markings indicating compliance with standards such as EN 13889 or ASME B30.26. Certification ensures that the shackle has undergone testing and meets safety requirements.

Pin Type:

Pay attention to the type of pin used in the shackle. Screw pins are easy to remove and replace, making them suitable for temporary connections. Safety bolt shackles, with their locking mechanism, are better for applications where security is a priority.

Safety First: Best Practices for Using Lifting Shackles

To maximise safety and efficiency when using lifting shackles, it’s important to consider these best practices:

• Regular Inspection: Thoroughly inspect shackles before each use for signs of wear, deformation, or damage.
• Proper Weight Limits: Always adhere to weight limits specified by the manufacturer. Overloading can lead to catastrophic failures.
• Positioning: Ensure proper shackle alignment to prevent side loading, which can significantly weaken the shackle.
• Avoid Twisting: Shackles should not be twisted during lifting, as this can affect their load-bearing capacity.

Lifting shackles might appear simple, but their contributions to various industries are anything but. These tools are essential for ensuring safe, efficient, and precise lifting operations across a wide range of applications. As technology advances and industries evolve, lifting shackles will continue to play a vital role in shaping the way heavy lifting and rigging tasks are carried out. Explore our entire range of lifting shackles today to find the perfect one for you and your project!
