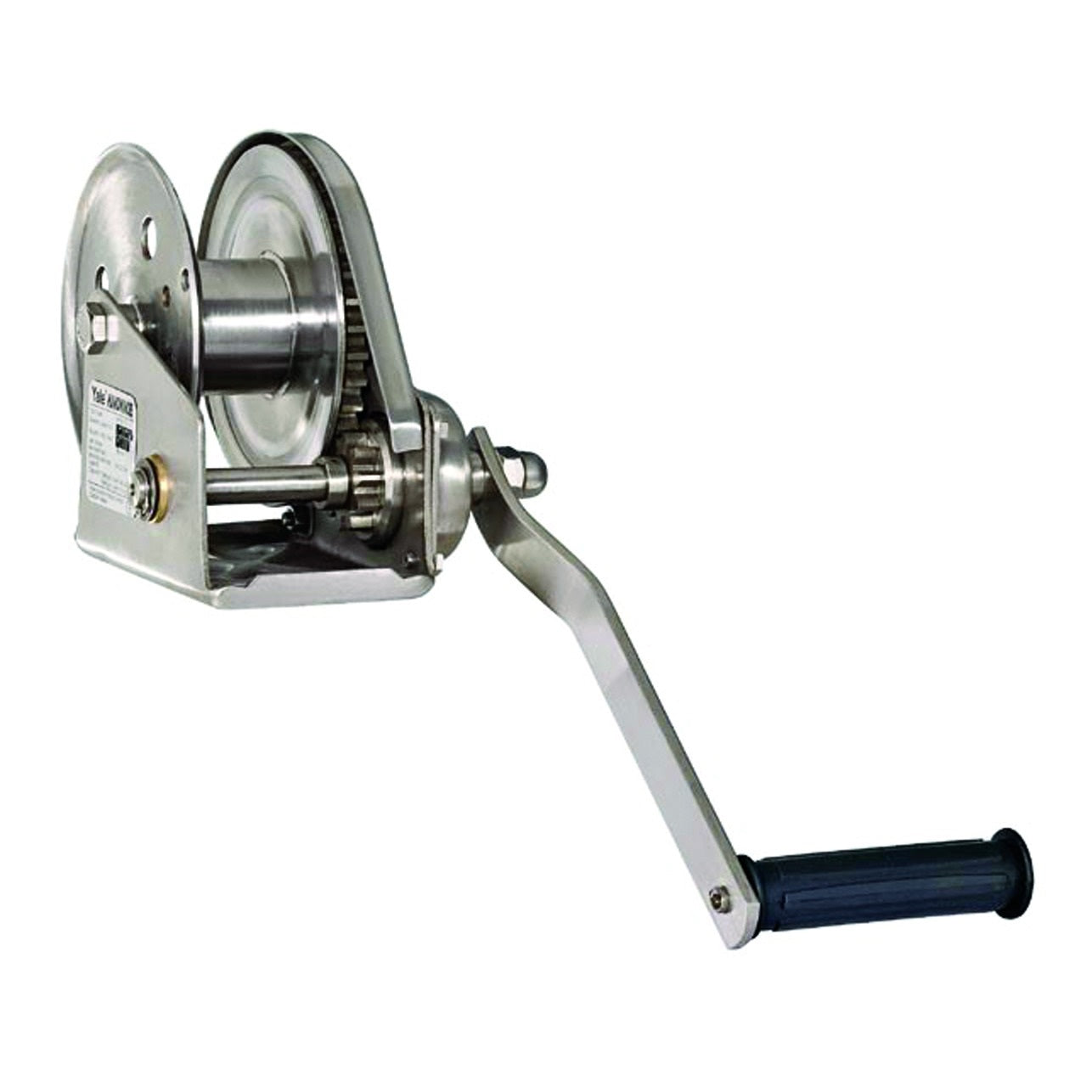

Pfaff Stainless Steel Spur Gear Drive Manual Wire Rope Winch

£363.48 inc. VAT
In stock
delivery icon
Estimated Lead Dispatch Time: 2-3 Working Days


Winch Cable

£363.48 inc. VAT
Data Sheet
Next Day Delivery
Next Day Delivery Available (before 1pm)*
30-Day Returns
30-Day Returns
12-Months Warranty
12-Months Warranty on all products
Price-Match Guarantee
Price-Match Guarantee

Model: HW-CS

Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt. As per the HW-C but with even more protection against the elements faced when used outdoors.

Features and Benefits:

  • Winch housing and rope drum from robust steel plate for high versatility.
  • Rope drum on bush bearings for flawless rope lead-off.
  • Spur gear drive for optimal efficiency.
  • Compact design.
  • Easy and quick mounting onto walls, poles, towers etc.
  • Pivotable handle.
  • Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
  • Comes complete with a high-visibility, yellow powder coated finish as standard.
  • Suitable for operation in ambient temperatures of -100°C to +500°C.


 Model Cap. 1st Rope Layer Cap. Top Rope Layer Crank Effort 1st Rope Layer Ratio Reccomm Rope Dia Min. Breaking Load of Wire Rope Number of Rope Layers
HW-CS30 300daN 120daN 22daN 4.2:1 5mm 13.6kN 9
HW-CS80 800daN 400daN 20daN 10:1 8mm 34.8kN 7


Supplied with an E.C Declaration of Conformity.
